Indoor FTTH Fiber Optic Cable Termination Box 16 Core Optic Fiber Access Terminal Box

Description

UT-King’s fiber access termination box FATB216A is able to hold up to 16 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution,storage and cable connection in one solid protection box.

Indicators

• Optical fiber curvature radius: 40mm
• Additional loss of fiber optic disc: less than 0.01dB
• Temperature range: - 40 C ~ + 70 C
• lateral pressure resistance: greater than 2000N / 10 cm
• Shock resistance: greater than or equal to 20N.m
• Protection level: IP65

Features

• Water-proof design with IP-65 Protection level.
• Integrated with splice cassette and cable management rods.
• Manage fibers in a reasonable fiber radius condition.
• Easy to maintain and extend the capacity.
• Fiber bend radius control more than 40mm.
• Suitable for the fusion splice or mechanical splice.
• 2:1*8 or 1:1*16 Splitter can be installed as an option.
• Efficient cable management.
• 16 ports cable entrance for drop cable.

Application

• Wall mounting and aerial mounting installation
• suitable for 2*3mm indoor FTTH drop cable an outdoor 4-7mm figure-8 self-supporting drop cable

Specification

Deatialed Images

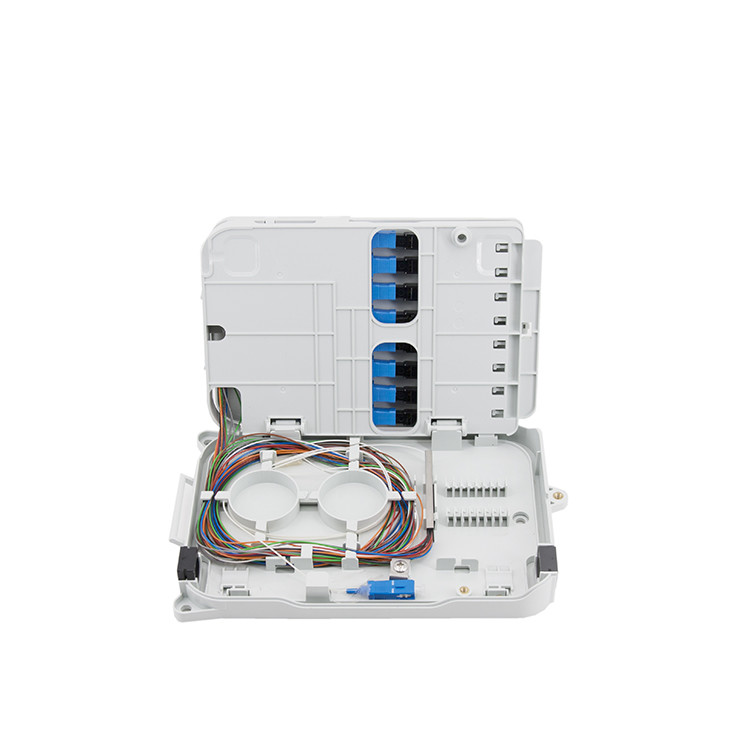

10mm IP65 Fiber Access Terminal Box

20Nm Fiber Access Terminal Box

20Nm wall mount fiber box

10mm IP65 Fiber Access Terminal Box Wall Mount 20Nm Black Images
