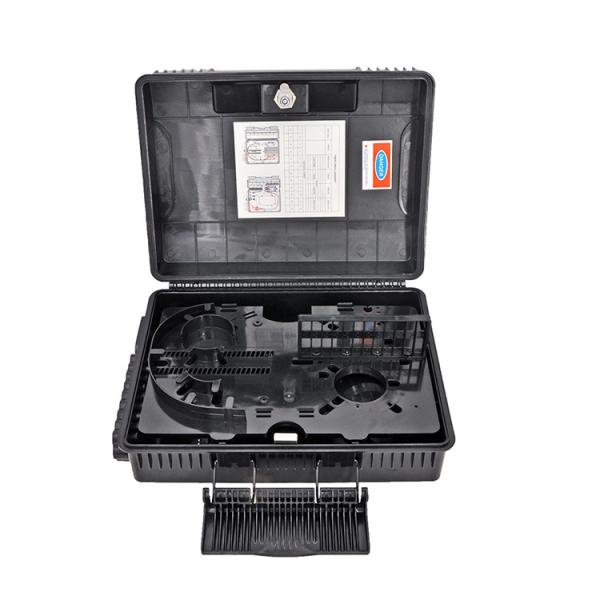

ISO9001 20kg Fiber Termination Cabinet Distribution 20kg

Shenzhen UT-King Technology Co., Ltd.

ISO9001 20kg Fiber Termination Cabinet Distribution 20kg

Brand Name : UT-King

Model Number : FDB224A

Certification : CE,ROHS,ISO9001

Place of Origin : China

MOQ : 10pcs

Payment Terms : T/T, Western Union

Supply Ability : 1000pcs/week

Delivery Time : 3-5days

Packaging Details : 1pcs/box 10pcs/carton

product name : fiber optic distribution box

material : 70%PC+30%ABS

Color : white/black

cable prot : 2 in 24 out

Dimension : 340mm*250mm*110mm

Assemmbling method : pole or wall-mounting

Protection level : IP65

Keywords : 24core fiber distribution box

number of Packing : 10pcs/carton

Adapter And Pigtai : With Or Without Is Optional

Application : Outdoor / indoor

Contact Now

Outdoor Fiber Optic Distribution Cabinet 24core Ftth Fiber Distribution Box Fibre Optical Nap Box

Description

UT-King’s FDB224A is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.

Features

  • Material: PC+ABS,wet-proof,water-proof,dust-proof,anti-aging, protection level up to IP66.
  • Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
  • Cable,pigtails,patch cords are running through own path without disturbing each other, cassette type SC adaptor installation, easy maintenance.
  • Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
  • Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.

Specification

Model UT-FDB224A
Dimension 340mm*250mm*110mm
Color White,Black or customized
Capacity of FOSC SC 24 cores/LC 48 cores
Max ratio 1:24
Cable entry ports In 2 Out 24
Diameter of Cable Φ20mm
Assemmbling method pole, wall-mounting
Protection level IP65
Outter carton size 620*520*380mm
number of Packing 10 pcs/ctn
weight 20kg /ctn

Detail Images

ISO9001 20kg Fiber Termination Cabinet Distribution 20kgISO9001 20kg Fiber Termination Cabinet Distribution 20kgISO9001 20kg Fiber Termination Cabinet Distribution 20kgISO9001 20kg Fiber Termination Cabinet Distribution 20kg

Installation:

1.Wall-mounted installation

2.Pole-mounted installation

Table 1 Model and configuration

Model Description Size(Pic 1) Max Capacity Installation Size(Pic 2) Cable ways
A*B*C(mm) SC LC PLC D*E (mm)
FDB224A Fiber Access Terminal 340*250*110 24 48

1 x 1:16/

3 x 1:8

145*120 Cutted/uncutted cable
